Intel Core I5-10400F + MSI MAG B460M MORTAR
Processeur Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset Intel® B460 Chipset
Fiche Produit

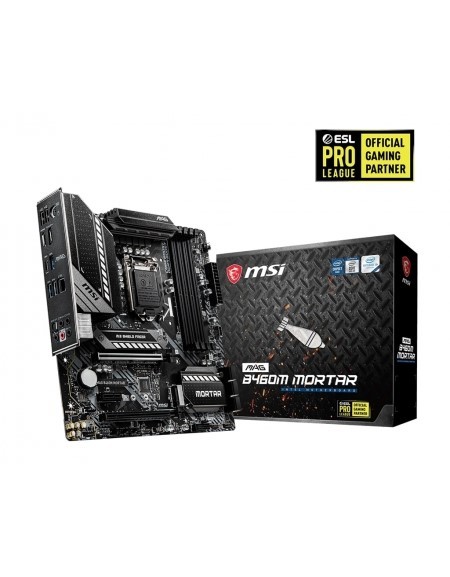

MSI MAG B460M MORTAR
Processeur Supports 10th Gen Intel® Core™ and Pentium® Gold / Celeron® processors for LGA1200 socket
Chipset Intel® B460 Chipset
Mémoire
4x DDR4 memory slots, support up to 128G
Intel® Core™ i7/i9
Support DDR4-2933 Memory (Max.)
Intel® Core™ i5 (Below)
Supports DDR4-2666 Memory (Max.)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Stockage Intel® B460 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel® Optane™ Memory Ready
Supports Intel® Smart Response Technology for Intel Core™ processor
Réseau 1x Realtek® RTL8125B 2.5G LAN Controller
Audio
Realtek® ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Ports USB
Intel® B460 Chipset
2x USB 3.2 Gen 1 5Gbps Type-C ports (1 port on the back panel, 1 port through the internal USB connector)
5x USB 3.2 Gen 1 5Gbps Type-A ports (3 ports on the back panel, 2 ports through the internal USB connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
Interface E/S Arrière
PS/2 Combo Port
DisplayPort
USB 3.2 Gen 1 5Gbps(Type-A)
2.5G LAN Port
HD Audio Connectors
USB 2.0 Ports
HDMI Port
USB 3.2 Gen 1 5Gbps(Type-C)
USB 3.2 Gen 1 5Gbps(Type-A)
Optical S/PDIF OUT
Interface E/S Interne
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
1x USB 3.2 Gen 1 5Gbps Type-C connector
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
2x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x TBT connector
1x RTD3 connector
Format mATX Form Factor ( 24.3 cm x 24.3 cm )
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Fiche Produit Intel BX8070110400F
Désignation Intel Core i5-10400F
Modèle BX8070110400F
Nbre de coeurs / Nbre de Threads 6 / 12
Fréquence CPU / Mode turbo 2.9 GHz / 4.3 GHz
TDP 65W
Cache 12Mo
Interface mémoire DDR4
Fréquence(s) de mémoire DDR4 2400 MHz , DDR4 2666 MHz , DDR4 2133 MHz
Virtualisation Intel Virtualization VT-d , Intel Virtualization VT-x
Version boîte Oui
